| DEC2838G | Output Power 輸出功率: 1W~14W | Weight 重量: 150g (Approx.) |
Brushless DC Gear Motor-Typical Application 無刷直流減速電機-典型應用 Home Application: Electric Window, Electric Curtain, Actuator, Small Appliances, Portable Equipment 家用電器：電動窗，電動窗簾，小家電，便攜式器材 Industry Facility: Transmission Equipment, Gear System, Actuator 工業設備：傳動機械，齒輪系統，致動器 Electronic Equipment: Electric Valve, Small Switcher, Lighting Adjustor, Small Percussion Drill 電控設備：電動閥門，小型轉換器，燈光調節器，電動扳手 Business Equipment: Electric Gate, Banking Facility, ATM, Vending Machine 商業設備：電動門禁，銀行設施，ATM機，售賣機 Personal Care: Massager, Stroker, Vibrator 個人護理：按摩器，摩挲器，振動器 | |||
Model 型號 | 電壓 Voltage(V) | No Load 空載 | Rated Load 額定負載 | Stall 堵轉 | ||||||
Operating Range | Rated | Speed (rpm) | Current (A) | Torque (Nm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (Nm) | Current (A) | |
DEC2838G-S01 (Gear Ratio 5.2) | 8-26 | 12 | 176 | 0.26 | 0.612 | 104 | 1.34 | 8.34 | 1.03 | 2.50 |
DEC2838G-S02 (Gear Ratio 24) | 8-26 | 12 | 65 | 0.24 | 0.750 | 45 | 0.61 | 3.53 | 3.80 | 1.6 |
DEC2838G-S03 (Gear Ratio 51) | 8-26 | 12 | 145 | 0.23 | 0.816 | 104 | 1.54 | 7.14 | 1.21 | 2.50 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI 特征：雙轉向，信號功能，鎖定保護，無級調速，低噪音，低電磁干擾
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power, gear box ratio & dimension, shaft extension feature & dimension can be changed to meet customer specific requirement. 注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、齒輪箱的減速比和尺寸、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。 |

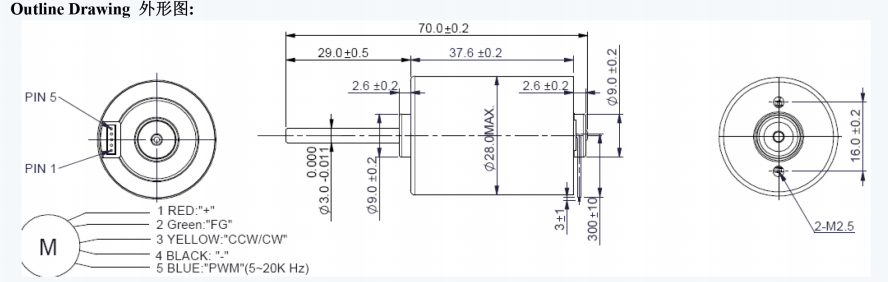

Outline Drawing 外形圖:
Unit: Millimeter |

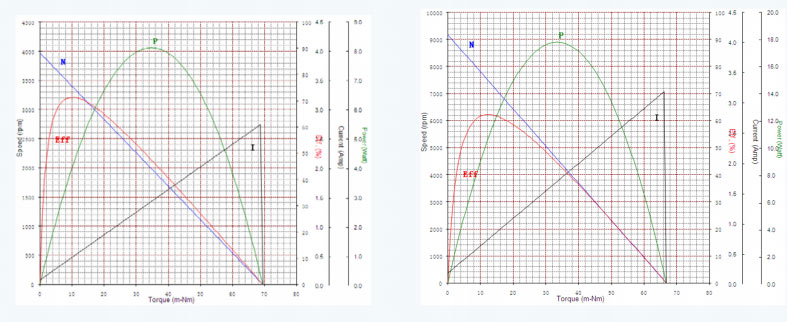

BLDC Motor Performance Curve 無刷電機性能曲線:
DEC2838G-S01(Bare Motor) 12V | DEC2838G-S03(Bare Motor) 12V |
